Quick answer: For refrigerant flow meters, true zero must be set at process pressure with the actual refrigerant phase. The gas curve scale relies on known density values for the gas, like R410A at 25 bar and 40 °C. If you skip these steps, mass flow error can exceed 1% and charge weight calculations will be wrong.

The Real Problem with Refrigerant Zero Drift

Most Coriolis flow meters leave the factory with a zero point set in water at ambient pressure. That works for water or diesel. Refrigerant systems run with gas at high pressure or two-phase fluid. Here is the thing: a factory zero can shift by 0.5 to 1.5 kg/h on a DN10 meter when you switch from water to R32 gas at 15 bar. We have seen this on customer sites many times. A chiller OEM in Thailand found a 1.2% offset in R134a charge mass because the meter zero had not been reset on site. Most engineers skip this step and then they chase the error through the entire control loop.

How We Set True Zero on a Coriolis Meter for Refrigerant

At Silver Automation Instruments, we follow a simple but strict field procedure. Fill the flow tube completely with the target refrigerant gas or liquid. Stabilize temperature and pressure for at least 30 minutes. Keep the meter in a no-flow condition with isolation valves closed. Then perform the zero calibration via the 4-20 mA HART interface or local display. Do not purge with nitrogen and assume the zero will hold for R290. Each refrigerant has unique density and viscosity, so the tube vibration baseline shifts. We also record drive gain and tube frequency. If drive gain goes above 40%, two-phase flow or gas bubbles may be present. A true zero point keeps accuracy within 0.1% of rate for a DN15 Coriolis mass flow meter from 50 to 500 kg/h.

Gas Curve Scale Calibration for R410A and R32

The gas curve scale aligns the meter mass flow output to a reference standard across a defined flow range. Low-density gases like R32 at 10 bar generate a weaker signal than liquids. Without a correct gas curve scale, linearity error can reach 0.8% or worse. Silver Instruments calibrates gas curves on an in-house gravimetric rig using NIST-traceable weights and a temperature-controlled chamber. We fill a receiver with liquid refrigerant, evaporate it, and pass the gas through the meter under test. This gives a multi-point calibration at 20%, 50%, and 100% of full scale. The result is a meter that reads correctly in kg/h for superheated R410A gas at suction conditions. Send us your refrigerant type, pressure (bar), temperature (degree C), pipe size (DN), and flow range for a calibration quote.

Field Experience from a Chiller Plant in Brazil

Last year a

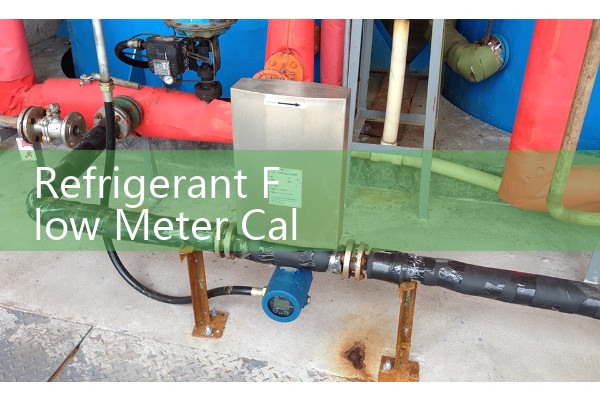

Refrigerant Flow Meter Calibration: Setting True Zero Points and Gas Curve Scales

chiller manufacturer in Brazil asked us to fix a mass flow error on their R290 charge line. The meter was a DN8 Coriolis with ATEX Zone 1 certification. Factory zero was set with water. On site, the gas was at 8 bar and 25 degree C. The zero reading showed 0.4 kg/h drift under no-flow. After we evacuated the line and filled with R290 gas, we performed a true zero calibration with valves shut. The zero drift dropped to 0.02 kg/h. Charge weight accuracy went from plus or minus 15 grams to plus or minus 3 grams per cycle. This precision matters when total charge is only 500 grams for a small residential chiller. The customer now orders every meter with factory zero set for R290 and a 5-point gas curve calibration.
