How Vortex Flow Meter Works: Von Karman Shedding Principles for High-Temperature Steam Sizing Loops
Quick answer: A vortex flow meter uses a bluff body to create alternating vortices in the flow stream. The vortex frequency is linear with flow velocity. For high-temperature steam sizing loops, the same Von Karman shedding principle works, but the meter must be sized with actual pressure in bar, temperature in °C, pipe size DN, and steam flow range in kg/h or t/h.
Silver Automation Instruments builds vortex flow meters from DN15 to DN300 for steam, gas, and liquid service. Most steam inquiries come from palm oil plants in Malaysia, food plants in Vietnam, chemical terminals in Saudi Arabia, and desalination plants in Australia. The same issue appears again and again. A buyer picks the meter size from the pipe size and forgets the steam density change.
What Is the Von Karman Shedding Principle
Von Karman shedding is a repeating flow pattern. When fluid passes a bluff body, the flow separates. Vortices form alternately on the left and right side of the body. The frequency of these vortices depends on flow speed and the width of the bluff body. A vortex flow meter uses a stainless steel bar across the pipe bore as the bluff body.
The meter detects the vortex frequency with a piezoelectric sensor or differential pressure sensor. The transmitter converts frequency to flow. The relation is simple in ideal conditions. Flow velocity equals the vortex frequency divided by the shedder coefficient. Because the frequency is linear with velocity, the meter works over a wide flow range.
Here is the thing. The vortex frequency does not change much with pressure or temperature. It changes with velocity. But steam mass flow is different. Steam density changes with pressure and temperature. If you want kg/h or t/h, you need a compensation loop. That is why a high-temperature steam sizing loop includes pressure and temperature transmitters.
Why Steam Sizing Loops Are Different
A steam sizing loop is the set of operating data used to select a vortex meter. You need at least five inputs. The minimum flow, normal flow, and maximum flow in kg/h or t/h. The steam pressure in bar. The steam temperature in °C. The pipe size DN. The steam type saturated or superheated.
Most engineers skip the minimum flow. They pick a DN100 meter because the pipe is DN100. Then the meter reads zero at low boiler output. We have seen this on many customer sites. A chemical plant in Vietnam ordered a DN100 vortex flow meter for a 6 t/h saturated steam header at 9 bar and 178 °C. The line size was DN100. The minimum flow was only 0.4 t/h. The meter could not detect flow below 0.7 t/h. The correct choice was a DN80 meter with a smaller bore.
Because steam density changes with pressure, a meter sized at 12 bar may not work at 3 bar. Low pressure steam has lower density and higher velocity for the same mass flow. The turndown shifts. A meter with a 10:1 turndown at 10 bar may deliver only 5:1 at 2 bar. You must size for the lowest pressure and the lowest flow condition.
High-Temperature Steam Meter Construction
Standard vortex meter bodies and shedders use 316L stainless steel. For high-temperature steam above 200 °C, Silver Instruments supplies a remote electronics version. The sensor uses a piezoelectric crystal with a welded stainless steel diaphragm. This design handles thermal shock better than a plastic or ceramic sensor.
Wet steam destroys vortex shedder edges. Install a steam trap and strainer upstream. The meter should sit in a horizontal line with flow in the direction of the arrow. For vertical steam lines, flow should be upward. This keeps condensate away from the sensor. Use a remote transmitter for pipe surface temperatures ov

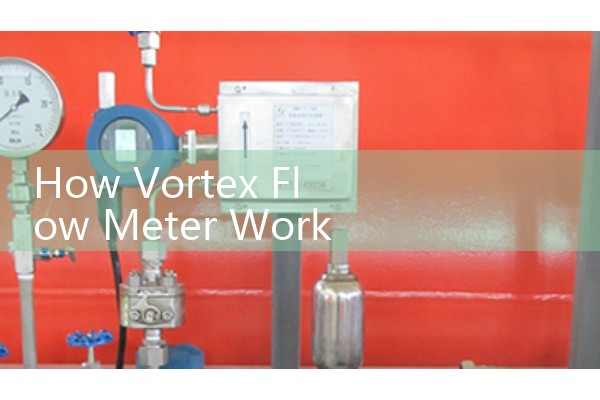

_600x400.jpg)
ATEX Zone 1 and Zone 2 versions are available for hazardous areas. The meter outputs 4-20 mA HART, Modbus RTU, or pulse. The HART version can accept pressure and temperature inputs from external transmitters and compute steam mass flow.
Pressure and Temperature Compensation Setup
A bare vortex meter gives volumetric flow. Steam mass flow needs density compensation. The transmitter reads a 4-20 mA HART pressure signal from a pressure transmitter and a PT100 temperature input. The electronics use stored steam tables to compute density. The output becomes mass flow in kg/h or t/h.
For example, a palm oil refinery in Indonesia meters 8 t/h saturated steam at 9 bar and 178 °C through a DN100 vortex meter. The pressure transmitter is installed 10 pipe diameters downstream of a control valve. The PT100 is in a thermowell. The meter reads steam density of 4.5 kg/m3. The flow signal goes to the DCS via 4-20 mA HART and is recorded on a Silver Instruments paperless recorder.
So the sizing loop is not just about the flow meter. It includes the pressure transmitter, the temperature sensor, and the pipe layout. If the pressure tap is too close to a valve, the reading may be noisy. Put the pressure tap at least 10D downstream of valves or bends.
Installation Rules for Steam Vortex Flow Meters
Straight pipe is important. Use 15D upstream and 5D downstream as a minimum. For a control valve or two elbows in one plane, use 30D upstream if possible. The meter bore should match the pipe schedule. High-temperature steam lines often use Schedule 40 or Schedule 80 pipe.
Most steam vortex meter failures come from three issues. Wrong flow velocity range. Wet steam. Sensor electronics overheating. Remote mount solves the heat issue. A steam trap solves the wet steam issue. Proper sizing solves the velocity issue.
FAQ: High-Temperature Steam Vortex Flow Meter Sizing
What is the lowest steam pressure a vortex flow meter can measure?
Most industrial vortex meters work from 0.5 bar to 40 bar for steam. Below 0.5 bar the steam density is low and the vortex signal becomes weak. Send us the actual minimum pressure in bar for a proper check.
Can a vortex flow meter handle superheated steam?
Yes. The Von Karman shedding principle works for superheated steam. Choose a high-temperature sensor and remote electronics. Tell us the actual temperature and pressure range.
What size vortex meter is used for 10 t/h steam at 8 bar?
A starting point is DN80 to DN100. The exact size depends on velocity and pressure drop. For 10 t/h saturated steam at 8 bar, a DN100 meter may work. We always check the minimum flow and not only the maximum flow.
Why does a steam vortex meter read zero at low flow?
The meter has a low flow cut-off point. Below this point the vortex signal is too weak. If the meter is oversized, the zero reading zone covers more actual steam flow. This is the most common sizing mistake.
Do I need pressure and temperature compensation for a steam vortex meter?
Yes, if you want mass flow in kg/h or t/h. A bare vortex meter gives volumetric flow. With pressure and temperature inputs, the transmitter computes steam density and outputs mass flow.
Steam Vortex Flow Meter Price and Sizing Support
Silver Automation Instruments is a vortex flow meter manufacturer and supplier for Southeast Asia, Australia, Latin America, Africa, and the Middle East. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range (kg/h or t/h). We will reply with a sizing sheet, model number, and price in 24 hours. Contact us by Tel at +86-135-1213-1526, WhatsApp at 86-135-12131526, or WeChat at +86 13512131526. Visit flow-meter.com.au for product specifications.
